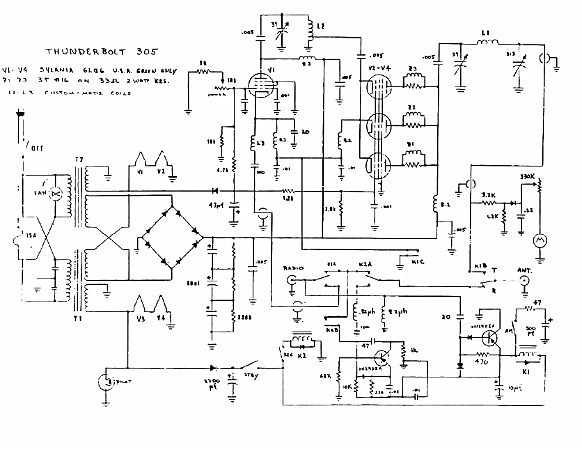

Thunderbolt 305 Schematic

Wiring diagram for the Thunderbolt 305 base amp. Tube type with internal power supply. The Thunderbolt is a 1x4 using 6LB6 sweep tubes and puts out a respectable 250 watt dead key with LOTS of swing.
